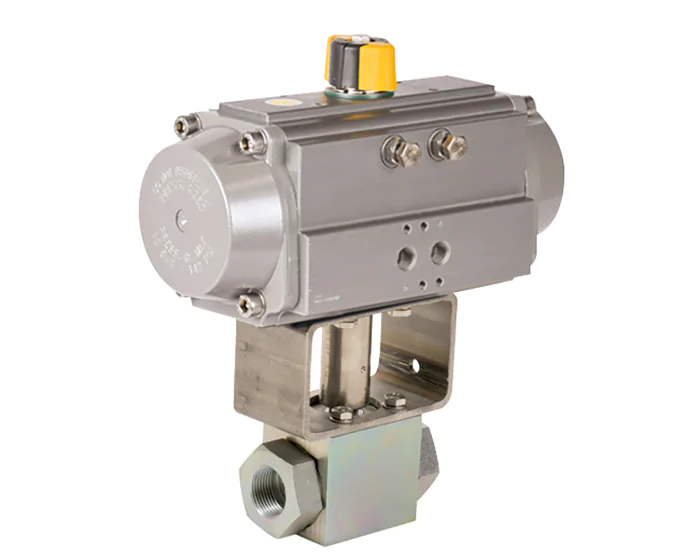

The 799ZI stainless steel ball valve, 1-piece full bore, withstands 315-500 bar. F316 body resists corrosion. Equipped with ALPHAIR RE/RES pneumatic actuator for reliable automated hydraulic control.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 100 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 316 |
| Adjustable limit screws | Yes |
| ATEX compatible | Yes |
| DN | DN10 - 3/8'' |
| Face to Face (mm) | 113.0 |
| Body material | Stainless steel 316 (1.4401) |
| ATEX protection mode | Ex c |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | FKM |
| PS (bar) | 315 |
| Connections | BSP FF |
| Seats | POM |
| Ball material | Stainless steel 316 |
| Surface temperature | TX |
| TS max (°C) | 100 |
| TS min (°C) | -20 |
| Pneumatic actuator type | Spring return |
| ATEX zone | 1. 2 |
| Warranty period | 1 year |
| CE | Risk category III |
| Range | Hydraulics |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel 316 (1.4401) Full DN10 - 3/8'' | 273221017007R | S1000508 |
€392.76
(excl. btw)
|
add to cart |
| BSP FF Stainless steel 316 (1.4401) Full DN10 - 3/8'' | 273221017108R | S1000509 |
€471.59
(excl. btw)
|
add to cart |
| BSP FF Stainless steel 316 (1.4401) Full DN15 - 1/2'' | 273222017007R | S1000510 |
€408.39
(excl. btw)
|
add to cart |
| BSP FF Stainless steel 316 (1.4401) Full DN15 - 1/2'' | 273222017109R | S1000511 |
€536.16
(excl. btw)
|
add to cart |
| BSP FF Stainless steel 316 (1.4401) Full DN20 - 3/4'' | 273223017008R | S1000512 |
€619.49
(excl. btw)
|
add to cart |
| BSP FF Stainless steel 316 (1.4401) Full DN20 - 3/4'' | 273223017110R | S1000513 |
€794.30
(excl. btw)
|
add to cart |
| BSP FF Stainless steel 316 (1.4401) Full DN25 - 1'' | 273224017008R | S1000514 |
€759.91
(excl. btw)
|
add to cart |
| BSP FF Stainless steel 316 (1.4401) Full DN25 - 1'' | 273224017110R | S1000515 |
€919.86
(excl. btw)
|
add to cart |
